Webhooks

Monek uses Svix to send secure webhook notifications to merchants when important transaction events occur, including sales, refunds, and reversals.

Configure Webhook

To receive webhook notifications you'll need a public HTTP POST URL on your server that can receive and process the webhook JSON payloads.

Your webhook URL can be registered via the Monek Portal on the Setting\Integrations page.

warning

Verify your endpoint address before submitting. Monek cannot resend webhooks to previously incorrect addresses. If you register the wrong endpoint URL, transactions that occurred before you correct it will be lost. Test your endpoint thoroughly to ensure it is accessible and correctly configured before registering it.

tip

This functionality is currently in pilot. To enable this option for your merchant please contact Monek Support

Webhook Payload

Each webhook event includes detailed transaction data

Name	Description
Data	The main Webhook node containing transaction details. See Webhook Data.
EventId	Unique identifier for this webhook and also the Monek Cross Reference for this transaction.
EventType	The type of event this webhook contains. See Event Types.
Metadata	Additional information relating to this webhook.
Timestamp	The data and time of the transaction represented by this webhook.

Webhook Data

Name	Description
Amount	The transaction amount minor currency.
AuthorisationCode	The authorisation code for a successful transaction.
AvsCv2Description	Description of the AVS/CV2 check result.
AvsCv2Result	Raw code for the AVS/CV2 result. See AVS/CV2 Response Values.
CardType	Card type code. See Card Type Values.
CardholderAddress	The cardholder's billing address.
CardholderEmail	The cardholder's email address.
CardholderName	The cardholder's name.
CardholderPhoneNumber	The cardholder's phone number.
CountryCode	The merchant's country code.
CrossReference	The unique character string returned by TransactDirect to identify this transaction.
CurrencyCode	The currency code used for the transaction.
IdempotencyToken	The idempotency token specified for this transaction.
Last4Digits	The last 4 digits of the payment card.
MerchantData	Additional merchant data provided by the merchant. Typically JSON or Base64 encoded.
MerchantName	The merchant name.
Message	Message indicating the result of this transaction.
MessageType	The message type for this transaction. See Message Types.
MonekId	The Monek Merchant ID for this merchant.
ParentReference	Contains the Cross Reference of the originating transaction. e.g. For completion of Pre-Auth, or Refund or Recharge of a previous transaction.
PaymentChannel	Payment channel provided by the merchant for this transaction.
PaymentDetail	Additional payment details provided by the merchant. Typically JSON or Base64 encoded.
PaymentReference	The ID provided by the merchant to identify the transaction.
ResponseCode	The TransactDirect response code. See Response Code Values.
ThreeDSecureResult	The 3-D Secure transaction result code.
ThreeDSecureVersion	The 3-D Secure version used.
TransactionDateTime	The date and time this transaction was processed.

Webhook Example

{
	"Data": {
		"Amount": "1",
		"AuthorisationCode": "713871",
		"AvsCv2Description": "SECURITY CODE MATCH ONLY",
		"AvsCv2Result": "211100",
		"CardType": "VC",
		"CardholderAddress": "",
		"CardholderEmail": "test@monek.com",
		"CardholderName": "Test Cardholder Name",
		"CardholderPhoneNumber": "",
		"CountryCode": "826",
		"CrossReference": "250613125457713871GD4",
		"CurrencyCode": "826",
		"IdempotencyToken": "177834ab-55f4-4caa-a4f7-3e789d81d9fe",
		"Last4Digits": "0216",
		"MerchantData": "",
		"MerchantName": "Test Account",
		"Message": "AUTH CODE:713871",
		"MessageType": "SALE_CNP_TO[INTERNET]",
		"MonekId": "0000893",
		"ParentReference": "",
		"PaymentChannel": "",
		"PaymentDetail": "Test VT",
		"PaymentReference": "Test VT",
		"ResponseCode": "00",
		"ThreeDSecureResult": "",
		"ThreeDSecureVersion": "",
		"TransactionDateTime": "2025-06-13T12:54:57.36+00:00"
	},
	"EventId": "250613125457713871GD4",
	"EventType": "sale.success",
	"Metadata": {
		"Application": {
			"Name": "Test Account",
			"PayloadRetentionPeriod": 90,
			"Source": "Monek.PaymentService",
			"Uid": "0000893"
		}
	},
	"Timestamp": "2025-06-13T12:54:57.36+00:00"
}

Reliability & Delivery Guarantees

Retry Policy

If a webhook delivery fails, Svix will automatically retry the delivery according to the following schedule:

• Attempt 1: Immediately
• Attempt 2: 5 seconds later
• Attempt 3: 5 minutes later
• Attempt 4: 30 minutes later
• Attempt 5: 2 hours later
• Attempt 6: 5 hours later
• Attempt 7: 10 hours later
• Final attempt: 24 hours later

Retries are sent if the endpoint returns a non-2xx status code or if the request times out (5 second timeout).

Event Ordering

Webhooks for the same transaction are delivered in order, but webhooks for different transactions may arrive out of sequence. Always use the EventId and transaction CrossReference to correlate webhook events correctly.

Latency & Timing Expectations

Webhook Delivery Latency

• Typical latency: Webhooks are delivered within 1-5 seconds of the transaction completing.
• Peak times: During periods of high transaction volume, latency may increase to 10-30 seconds.
• Guaranteed delivery: Monek guarantees eventual delivery (at least once) via the retry policy described above.

When Are Webhooks Sent?

Webhooks are sent immediately after:

• Sales: Transaction authorisation completes (successful or declined)
• Refunds: Refund is processed
• Reversals: Reversal is processed
• Verify: Account verification completes

Webhooks are sent regardless of whether the transaction was successful. Check the `EventType` field to determine the transaction outcome (e.g., `sale.success` vs `sale.decline`).

Monitoring Webhook Health

Regularly check your webhook endpoint health in the Svix Dashboard:

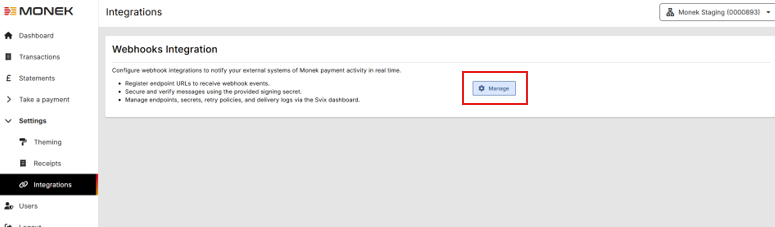

1. Log in to your Svix account (accessible from Monek Portal → Settings → Integrations → Webhooks → Manage)
2. Navigate to your endpoint to view:
   • Delivery success rate
   • Recent delivery attempts and their status
   • Error messages from failed deliveries
3. Set up alerts for failed deliveries to be notified immediately if your endpoint becomes unavailable.

Event Types

Each webhook includes an EventType field which indicates the type of transaction and result of the transaction in the form type.result. For example sale.success would indicate a sale transaction that was successfully authorised.

Type	Description
sale	A sale transaction
verify	An account verification transaction
refund	A refund transaction
reversal	A transaction reversal
unknown	An unknown or unsupported transaction type. e.g. When an invalid message type was used

Result	Description
success	Transaction was successful
refer	Transaction was referred for further checks
decline	Transaction was declined
error	An error occurred processing this transaction

tip

Handle new or unknown types defensively. For example by logging them for review and implementation.

Verifying Webhook Authenticity

Because of the way webhooks work, attackers can impersonate services by simply sending a fake webhook to an endpoint. This is a potential security hole for many applications.

In order to prevent it, every webhook and its metadata is signed with a unique key for each endpoint. This signature can then be used to verify the webhook is genuine.

There are two options to verify authenticity

Verify Webhooks with Svix Libraries

Details on how to verify webhooks using Svix libraries are available at How to Verify Webhooks with the Svix Libraries

Examples are provided for various languages including C#, PHP, Python, JavaScript, and more.

Manual Verification

Advanced integrations may implement their own HMAC-based signature checking. Learn more about this at Verifying Webhooks Manually.

Secret Key

Your secret key is available via the Svix Dashboard. You can rotate your secret key there at any time.

Source IP Addresses

In case your webhook receiving endpoint is behind a firewall or NAT, you may need to allow traffic from Svix's Static Source IP addresses.

Current IP Addresses (EU Region)

52.215.16.239
54.216.8.72
63.33.109.123
2a05:d028:17:8000::/56
